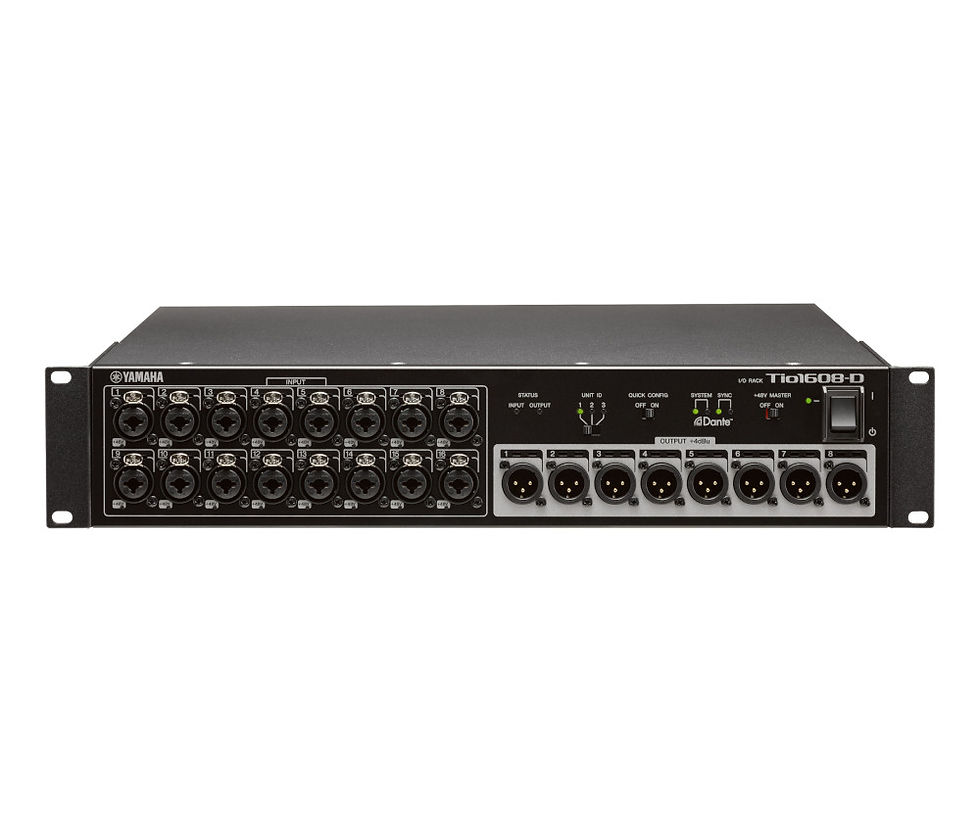

Yamaha Pro Dante I/O Expansion for TF Rack
The Yamaha Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Tio racks feature the same recallable D-PRE microphone preamplifiers as the TF series delivering extraordinarily natural and musical sound. In combination with TF series consoles, Tio racks can be connected using up to three units with a fast and easy setup. * Optional NY64-D Card is required.
Yamaha Pro Dante I/O Expansion for TF Rack
The Yamaha Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Tio racks feature the same recallable D-PRE microphone preamplifiers as the TF series delivering extraordinarily natural and musical sound. In combination with TF series consoles, Tio racks can be connected using up to three units with a fast and easy setup.
* Optional NY64-D Card is required.
Document Icon
Find additional information like application diagrams and product details on the Yamaha website.

Yamaha Pro Dante I/O Expansion for TF Rack

SKU: YAC-TIO1608-D
$0.00Price
Excluding Sales Tax
Quantity
  • Specs
    Specifications
    YAC-TIO1608-D
    Less than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
    +0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
    -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
    18-7/8 in. x 3-4/8 in. x 14-3/8 in.
    Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
    Residual output noise: -88dBu, ST master off *Measured with A-weighting filter
    Owner’s Manual, Power Cord(2.5m), Rubber stoppers(4)
    32-104°F (0–40°C)
    50 W
    100-240V, 50/60Hz
    -4-140°F (-20–60 °C)
    12.6 lbs.
    Less than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
    44.1kHz or 48kHz
    108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter

    Total Harmonic Distortion (THD)
    Frequency Response
    Audio Crosstalk
    Dimensions (W x H x D)
    Features
    Included Accessories
    Operating Temperature
    Power Consumption
    Power Rating
    Storage Temperature
    Weight
    Delay
    Supported Sample Rates
    Dynamic Range
