Perfect for use in nurseries and other indoor residential applications, this high-definition camera’s sensor offers 2MP full 1080p support and a true 16:9 widescreen view – all in a compact form factor. Its innovative mount provides flexibility for installation and includes a handy ball and socket joint that allows you to point the camera in any direction – even straight down. Plus, this flexible mount will install anywhere you need it, on a wall or free standing on a shelf or dresser. Installation is further simplified with Power over Ethernet (PoE) and an IP installer utility that makes it easy to find cameras on the network. Live video streaming to control systems and free apps for iOS® / Android® make the 300-Series Cube a convenient, easy-to-use solution for in-home monitoring – even on the go.
Cube IP Indoor Camera with IR
Perfect for use in nurseries and other indoor residential applications, this high-definition camera’s sensor offers 2MP full 1080p support and a true 16:9 widescreen view – all in a compact form factor. Its innovative mount provides flexibility for installation and includes a handy ball and socket joint that allows you to point the camera in any direction – even straight down. Plus, this flexible mount will install anywhere you need it, on a wall or free standing on a shelf or dresser. Installation is further simplified with Power over Ethernet (PoE) and an IP installer utility that makes it easy to find cameras on the network. Live video streaming to control systems and free apps for iOS® / Android® make the 300-Series Cube a convenient, easy-to-use solution for in-home monitoring – even on the go.
Important Note - Please note that the Android Wirepath mobile app is no longer available on the Google Play store. Please download the mobile application from the support tab.High Resolution
Quad Stream
IR and Sense-Up
IR
ONVIF Compliant
Dynamic DNS
Smooth video up to 30FPS
2.8mm Fixed Lens
Edge Storage with microSD Card Slot
Foreground/ background contrast
Smartphone & Windows Access
Power over Ethernet
Part of the OvrC Ecosystem
Together with Wirepath, OvrC offers remote IP camera setup and post-install adjustments in a flash. Monitor when devices and networks fall offline, make changes to advanced settings and upgrade firmware whenever and wherever it’s convenient.* Save yourself a truck roll by managing cameras and recorders remotely. Learn more >>
*A firmware update for cameras purchased before May 2016 is now available. Click here for details.Sense-Up
See in color, in the dark! By automatically slowing the shutter speed, the camera is able to pick up the slightest traces of light.
D-WDR
Provides clearer images and even lighting in applications that are both bright and dark. This is useful in areas with windows and natural light.
Backlight Compensation
Reduces silhouetting so you see foreground subjects clearly when positioned in front of a bright background light source.
True Day/Night
For more accurate, vivid color reproduction during daytime use, an IR Cut filter is automatically moved over the lens to block unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.
IR Illumination
An array of IR LEDs are included to assist with nighttime performance. The total LED power is limited due to PoE constraints. It's recommended to use IR for indoor and targeted applications, not as the sole ambient light source in dark environments.</

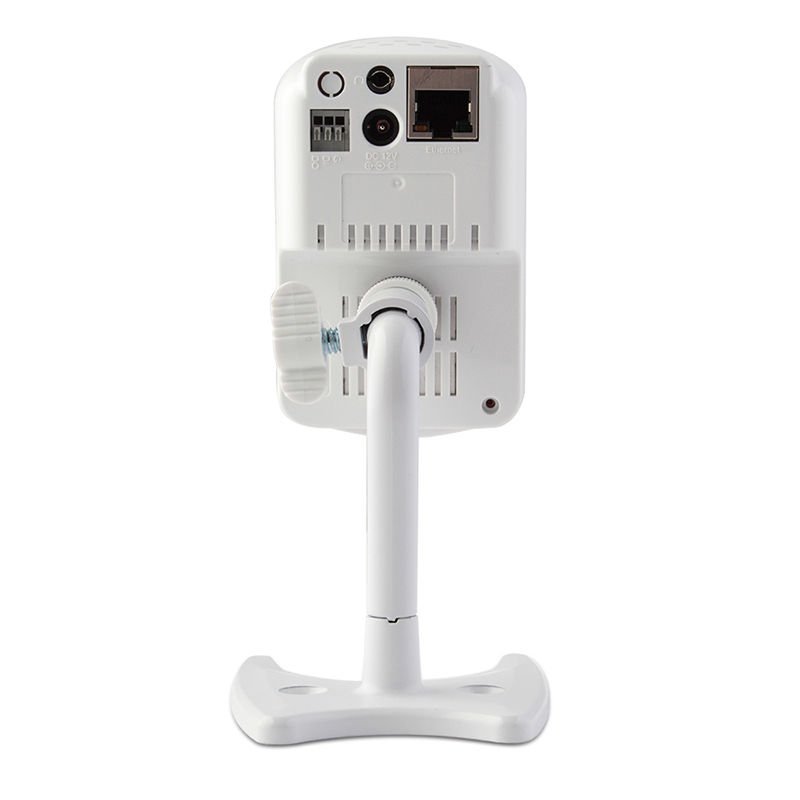

Wirepath™ Surveillance 300 Series Cube IP Indoor Camera with IR - White
- SpecsSpecifications
WPS-300-CUB-IP-WH 10/ 100 Base-T1 Digital in and 1 Digital out, DC-jack, 1 Audio out, RJ45CE, FCC, RoHS, ONVIF (v1.01 and v1.02 and v2.2)3" x 6" x 3.5"32° to 113°FYes - PoE IEEE 802.3af 48V 15W, 3.46W(IR Off) / 4.46W(IR On).32 lbYesYesYes0.1 lux @F2.0 (IR off), 0 lux @F2.0 (IR on)1/2.7” 2MP CMOS sensorYesYes15.4 Ft.2.8mm Fixed Lens F2.0Yes, 3 different areasBrightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed adjustable, AGC, Sense-Up, D-WDR, Flip, Mirror, Noise reduction, Day&Night adjustableYes, 3 different areasYesMotion Detection, IP Ping failure, Network disconnect, Schedule, Digital Input, TamperingYes1/5~1/1000Up to 10Email, FTP, Save to micro SD card, Digital Output, SAMBAYesNoEthernet PortsAudio Inputs / OutputsCertificationsDimensions (W x H x D)Operating TemperaturePower ConsumptionWeightAuto Gain ControlDNRFull Screen MonitoringMinimum IlluminationImage SensorImage SnapshotDay/Night IR Cut FilterIR RangeLensMotion DetectionSupported Network ProtocolsPrivacy MaskQuad StreamingRecording TriggerSense-Up (Elec. Shutter)Shutter SpeedSimultaneous ConnectionsTriggered Action Desc.WDROutdoor Rating
