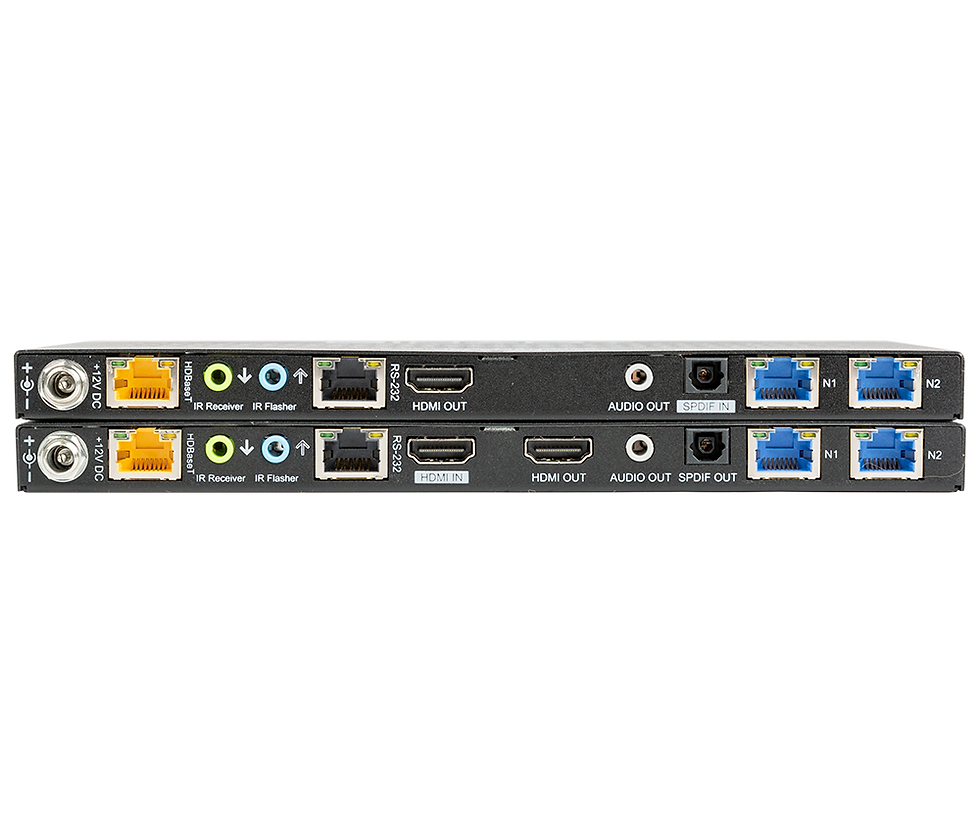

This high-performance extender delivers 4K HDR HDMI content up to 330ft reliably and effectively and supports bi-directional IR passthrough, CEC passthrough, RS232 pass through, and Ethernet passthrough. With bi-directional PoC supported, only one power adapter is needed. It also features HDMI IN audio de-embedding, allowing the extender to output both digital and analog audio via 3.5mm and Toslink.
4K60 4:4:4 icon
@@altText
2.2 HDCP icon
PoC icon
High resolution screen with 4K UHD and 60Hz HDR logos
Full 4K HDR Content
This extender offers full support of 4K@30Hz (including HDMI® with 3D), Deep Color (36bit), as well as support for Dolby® True HD, Dolby® Digital Plus, DTS™-HD Master and LPCM audio formats. This product is compatible with HDMI 2.0/ HDCP 2.2 products as well. This extender supports 4K@30 Hz (4:4:4), 4K@60 Hz (4:2:0), and 1080p up to 330ft. Please note: 4K support varies by distance and cable type. Please refer to specifications for further details.
Cable plugging into POC connection
Bi-Directional Power over Cable (POC)
No room for a bulky power supply behind the TV or in a rack? Not a problem. With Bi-Directional Power over Cable (POC), you can send power over the same Cat5e/6 cable that extends your video, audio, and control signals. This means you only need one power supply - and you can put it at the head end or display to get it completely out of the way. Plus, the extender features screw-down power plugs, so you never have to worry about getting service calls because a plug fell out when the TV was moved. Now those are some real reasons to celebrate!
Close up of IR and RS-232 ports
Complete Control with Bi-Directional IR, RS-232 & IP
Thanks to bi-directional IR and RS-232, you get no-hassle integration with a variety of control systems, and you can easily send IR signals from the TV location back to cable boxes, DVD players, and other source equipment at the head end. The IR connections feature active circuitry that supports a wide variety of IR and control system types.
Surge protection icon with storm clouds in background
Built-In ESD and Surge Protection, Thermal Reliability
Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tortured with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V. More importantly, though, they each lived to tell about it!
Two-Way Audio with ARC
For a high-tech way to transmit audio back to a centralized location, an AVR, or another system, use the ARC (Audio Return Channel) feature to send audio from a smart TV or another source in the viewing room back to the head end. It’s great for smart TVs, Blu-Ray players, or other content sources that stream original audio and video straight from the box. Plus, this extender also features audio de-embedding with 3.5mm or Toslink output on both the transmitter-side and receiver-side.
Supports Auto Downscaling
This extender features auto downscaling, which enables support for a complete range of digital and analog signals to ensure every source displays perfectly every time.
DIP Switch Support
With DIP switch support, you can easily configure EDID, IR, RS232, and ARC functions for easy system setup.
Supports Local Output/Loop Out
In addition to extending the signal, this model has a handy local output that lets you loop back content to monitor the feed on a local display at the sender end.
Surge protection icon with storm clouds in background
Ideal for Professional Environments
Whether delivering content from a laptop in a boardroom or extending graphics in a command-and-control environment, the B-660-EXT-444-100AS has you covered with bi-directional RS-232 control, ethernet passthrough and its ability to deliver video formats up to 4K60Hz to accommodate the latest graphic requirements.
Package Contents:
(1) Extender
(1) DC 12V Power Adapter with US Pins
(4) Mounting Brackets (with Screws)
(4) Drywall Screws
(8) Rubber Feet
(2) HDBaseT Stickers
(2) Power Cord Stickers
(1) User Manual
Application diagram for B-660-EXT-444-100AS
